HOT ! 2025春の新作 Amazon.com: ZCBYBT 0-190 Ohm Fuel Sending Unit 90° Elbow Hardware

• Rated Power: 125mW Output Signal: 0 ~ 190Ω Accuracy Range: 10 ~ 40mm Working Temperature: -40 ℃ ~ + 85 ℃
• The sensor body is made of stainless steel for long life, stable output signal and accurate measurement. Suitable for gasoline, diesel, water etc

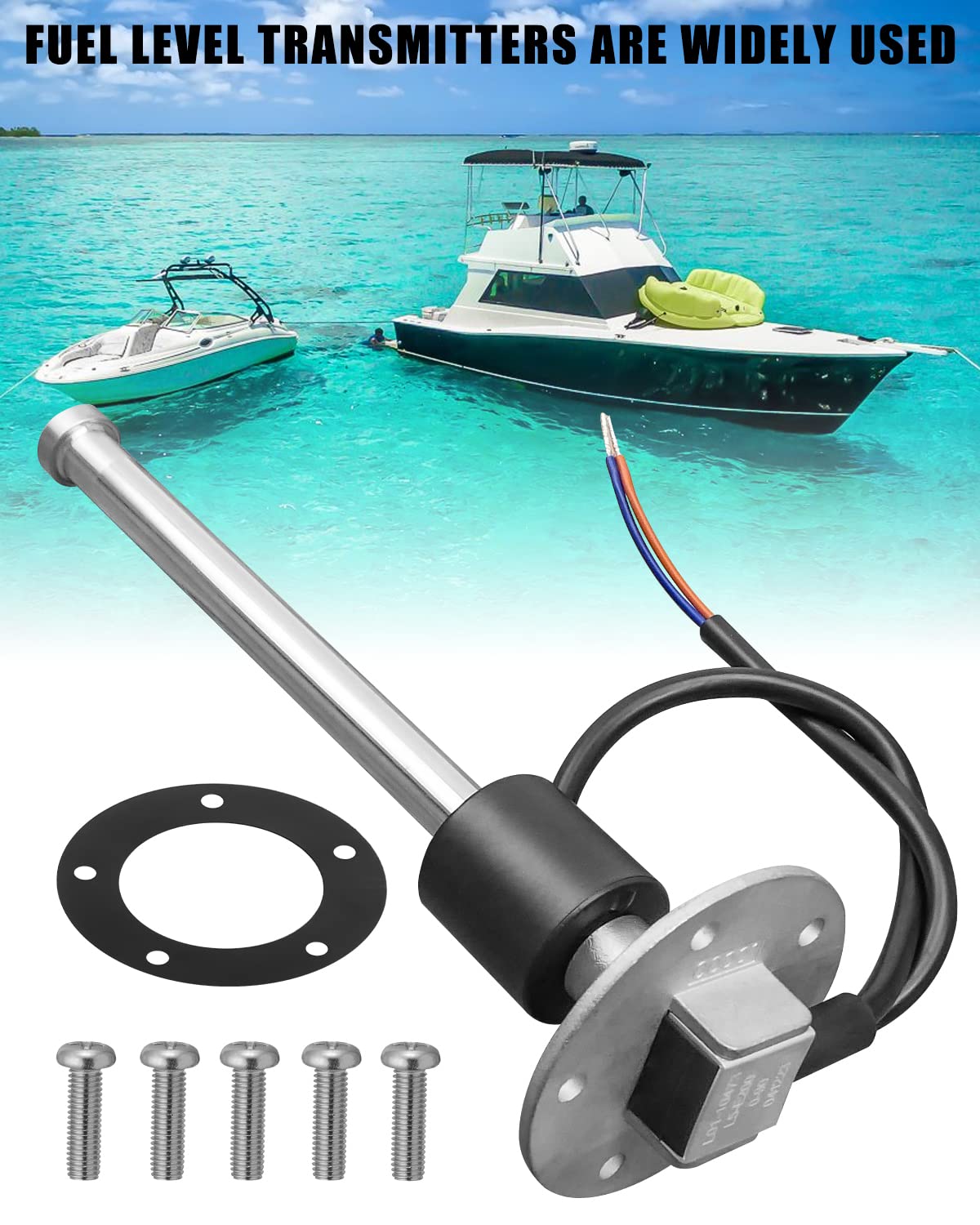

• Whether it's a ship, car, truck, trailer or bus, our fuel level sensor will meet the different needs of each sector and ensure a reliable level of monitoring
• Features SAE standard 5-hole installation and includes screws, washers, heat shrink terminals and installation wiring instructions for quick and easy installation. No more worrying about undetectable fluid levels affecting your travel or sailing plan
• Note: In addition to adjacent sides or baffles of the tank, you must maintain a 25mm gap between the bottom of the tank and the float retention ring

Specifications
Material: SUS304 stainless steel.
Alarm Switch Rated Current: 500mA
Rated Power: 125 mW
Output signal: 0 ~ 190Ω
Precision Range: 0.4 - 1.6 inches (10 - 40 mm)
Operating temperature: -40 ℃ ~ + 85 ℃
Assembly Method: SAE Standard 5 Hole
Protection level: IP67

Package included
1 x Oil Level Sensor

Note
This product is equipped with 5 M5 thread and 2mm thick NBR gaskets. For use with gas tanks, we recommend using 2mm FPM gaskets.
